Hill Air Force Base OU-8

    Montgomery Watson, our client, was in charge of the water reclamation project for this site (OU-8) at Hill Air Force Base. They asked us to come and get the system "working again". We also were asked to make a few upgrades and to document the entire system. Since there was no document to being with there was some trial and error. The system included Allen Bradley equipment. I had to start with trying to find the correct communications cable and then try different coma. setting till I found the correct one to work with the PanelView. I modified a few screens and created a couple of new ones.

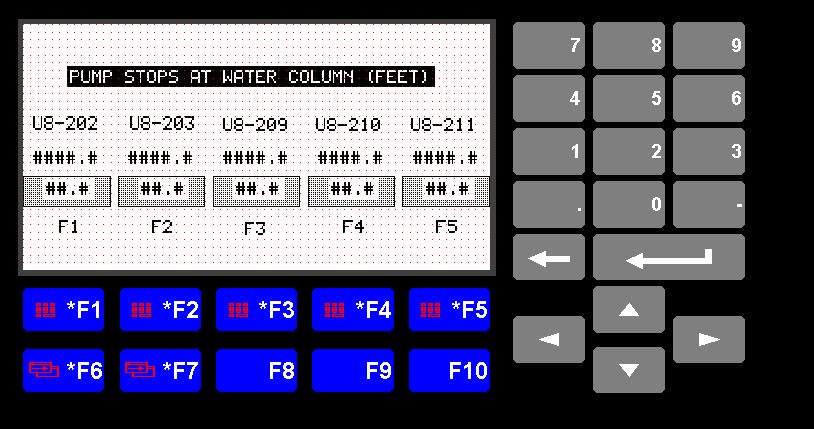

Screen Shot 1 (.jpg 84k)

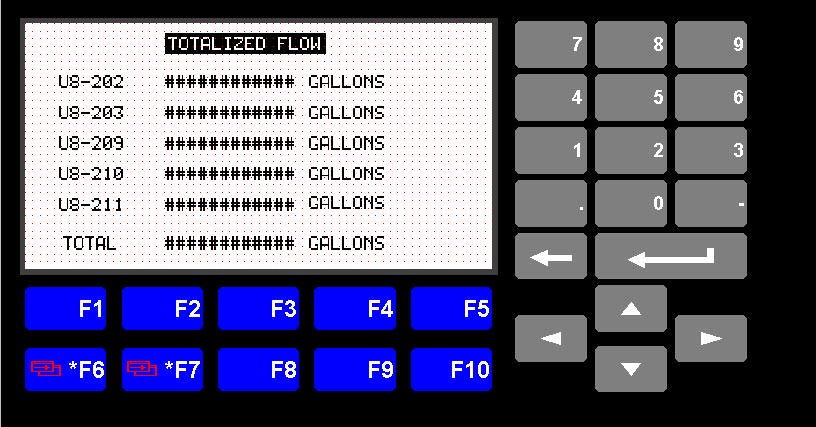

Screen Shot 2 (.jpg 84k)
